Spring Security

Spring Security provides ways to perform authentication and authorization in a web application. We can use spring security in any servlet based web application.

Benefits of Using Spring Security

spring security example tutorialSome of the benefits of using Spring Security are:

  • Proven technology, it’s better to use this than reinvent the wheel. Security is something where we need to take extra care, otherwise our application will be vulnerable for attackers.
  • Prevents some of the common attacks such as CSRF, session fixation attacks.
  • Easy to integrate in any web application. We don’t need to modify web application configurations, spring automatically injects security filters to the web application.
  • Provides support for authentication by different ways – in-memory, DAO, JDBC, LDAP and many more.
  • Provides option to ignore specific URL patterns, good for serving static HTML, image files.
  • Support for groups and roles.

Spring Security Example

We will create a web application and integrate it with Spring Security. Create a web application using “Dynamic Web Project” option in Eclipse, so that our skeleton web application is ready. Make sure to convert it to maven project because we are using Maven for build and deployment. Once we will have our application secured, final project structure will look like below image.

We will look into three spring security authentication methods.

  • in-memory
  • DAO
  • JDBC

Database Script for JDBC Authentication

For JDBC, we are using MySQL database and have following script executed to create the user details tables.

CREATE TABLE `Employees` (
  `username` varchar(20) NOT NULL DEFAULT '',
  `password` varchar(20) NOT NULL DEFAULT '',
  `enabled` tinyint(1) NOT NULL DEFAULT '1',
  PRIMARY KEY (`username`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `Roles` (
  `username` varchar(20) NOT NULL DEFAULT '',
  `role` varchar(20) NOT NULL DEFAULT '',
  PRIMARY KEY (`username`,`role`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

INSERT INTO `Employees` (`username`, `password`, `enabled`)
VALUES
    ('pankaj', 'pankaj123', 1);

INSERT INTO `Roles` (`username`, `role`)
VALUES
    ('pankaj', 'Admin'),
    ('pankaj', 'CEO');

commit;

We would also need to configure JDBC DataSource as JNDI in our servlet container, to learn about this please read Tomcat JNDI DataSource Example.

Spring Security Maven Dependencies

Here is our final pom.xml file.

<project xmlns="https://maven.apache.org/POM/4.0.0" xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="https://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>WebappSpringSecurity</groupId>
    <artifactId>WebappSpringSecurity</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>war</packaging>
    <dependencies>
        <!-- Spring Security Artifacts - START -->
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-web</artifactId>
            <version>3.2.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-config</artifactId>
            <version>3.2.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-taglibs</artifactId>
            <version>3.0.5.RELEASE</version>
        </dependency>
        <!-- Spring Security Artifacts - END -->

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.1</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.0.1</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>commons-logging</groupId>
            <artifactId>commons-logging</artifactId>
            <version>1.1.1</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>4.0.2.RELEASE</version>
        </dependency>
    </dependencies>
    <build>
        <sourceDirectory>src</sourceDirectory>
        <plugins>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.1</version>
                <configuration>
                    <source>1.7</source>
                    <target>1.7</target>
                </configuration>
            </plugin>
            <plugin>
                <artifactId>maven-war-plugin</artifactId>
                <version>2.3</version>
                <configuration>
                    <warSourceDirectory>WebContent</warSourceDirectory>
                    <failOnMissingWebXml>false</failOnMissingWebXml>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

Spring Security Example UserDetailsService DAO Implementation

Since we will be using DAO based authentication also, we need to implement UserDetailsService interface and provide the implementation for loadUserByUsername() method. Ideally we should be using some resource to validate the user, but for simplicity we are just doing basic validation.

AppUserDetailsServiceDAO.java

package com.journaldev.webapp.spring.dao;

import java.util.Collection;
import java.util.List;

import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;

public class AppUserDetailsServiceDAO implements UserDetailsService {

    protected final Log logger = LogFactory.getLog(getClass());

    @Override
    public UserDetails loadUserByUsername(final String username)
            throws UsernameNotFoundException {

        logger.info("loadUserByUsername username="+username);

        if(!username.equals("pankaj")){
            throw new UsernameNotFoundException(username + " not found");
        }

        //creating dummy user details, should do JDBC operations
        return new UserDetails() {

            private static final long serialVersionUID = 2059202961588104658L;

            @Override
            public boolean isEnabled() {
                return true;
            }

            @Override
            public boolean isCredentialsNonExpired() {
                return true;
            }

            @Override
            public boolean isAccountNonLocked() {
                return true;
            }

            @Override
            public boolean isAccountNonExpired() {
                return true;
            }

            @Override
            public String getUsername() {
                return username;
            }

            @Override
            public String getPassword() {
                return "pankaj123";
            }

            @Override
            public Collection<? extends GrantedAuthority> getAuthorities() {
                List<SimpleGrantedAuthority> auths = new java.util.ArrayList<SimpleGrantedAuthority>();
                auths.add(new SimpleGrantedAuthority("admin"));
                return auths;
            }
        };
    }

}

Notice that we are creating an anonymous inner class of UserDetails and returning it. You can create an implementation class for it and then instantiate and return it. Usually that is the way to go in actual applications.

Spring Security Example WebSecurityConfigurer Implementation

We can implement WebSecurityConfigurer interface or we can extend the base implementation class WebSecurityConfigurerAdapter and override the methods.

SecurityConfig.java

package com.journaldev.webapp.spring.security;

import javax.naming.Context;
import javax.naming.InitialContext;
import javax.sql.DataSource;

import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.WebSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

import com.journaldev.webapp.spring.dao.AppUserDetailsServiceDAO;

@Configuration
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Override
    public void configure(AuthenticationManagerBuilder auth)
            throws Exception {

        // in-memory authentication
        // auth.inMemoryAuthentication().withUser("pankaj").password("pankaj123").roles("USER");

        // using custom UserDetailsService DAO
        // auth.userDetailsService(new AppUserDetailsServiceDAO());

        // using JDBC
        Context ctx = new InitialContext();
        DataSource ds = (DataSource) ctx
                .lookup("java:/comp/env/jdbc/MyLocalDB");

        final String findUserQuery = "select username,password,enabled "
                + "from Employees " + "where username = ?";
        final String findRoles = "select username,role " + "from Roles "
                + "where username = ?";

        auth.jdbcAuthentication().dataSource(ds)
                .usersByUsernameQuery(findUserQuery)
                .authoritiesByUsernameQuery(findRoles);
    }

    @Override
    public void configure(WebSecurity web) throws Exception {
        web
            .ignoring()
                // Spring Security should completely ignore URLs ending with .html
                .antMatchers("/*.html");
    }

}

Notice that we are ignoring all HTML files by overriding configure(WebSecurity web) method. The code shows how to plugin JDBC authentication. We need to configure it by providing DataSource. Since we are using custom tables, we are also required to provide the select queries to get the user details and its roles. Configuring in-memory and DAO based authentication is easy, they are commented in above code. You can uncomment them to use them, make sure to have only one configuration at a time. @Configuration and @EnableWebSecurity annotations are required, so that spring framework knows that this class will be used for spring security configuration. Spring Security Configuration is using Builder Pattern and based on the authenticate method, some of the methods won’t be available later on. For example, auth.userDetailsService() returns the instance of UserDetailsService and then we can’t have any other options, such as we can’t set DataSource after it.

Integrating Spring Security Web with Servlet API

The last part is to integrate our Spring Security configuration class to the Servlet API. This can be done easily by extending AbstractSecurityWebApplicationInitializer class and passing the Security configuration class in the super class constructor.

SecurityWebApplicationInitializer.java

package com.journaldev.webapp.spring.security;

import org.springframework.security.web.context.AbstractSecurityWebApplicationInitializer;

public class SecurityWebApplicationInitializer extends
        AbstractSecurityWebApplicationInitializer {

    public SecurityWebApplicationInitializer() {
        super(SecurityConfig.class);
    }
}

When our context startup, it uses ServletContext to add ContextLoaderListener listener and register our configuration class as Servlet Filter. Note that this will work only in Servlet-3 complaint servlet containers. So if you are using Apache Tomcat, make sure it’s version is 7.0 or higher. Our project is ready, just deploy it in your favorite servlet container. I am using Apache Tomcat-7 for running this application. Below images show the response in various scenarios.

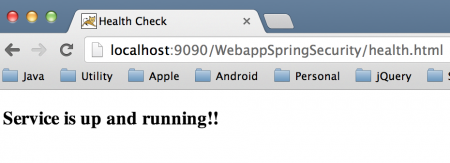

Accessing HTML Page without Security

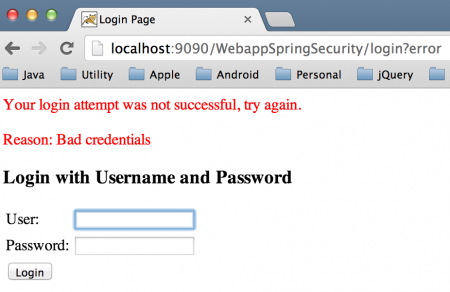

Authentication Failed for Bad Credentials

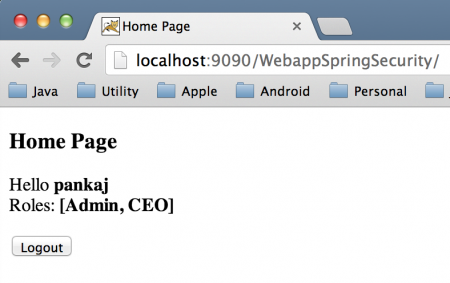

Home Page with Spring Security JDBC Authentication

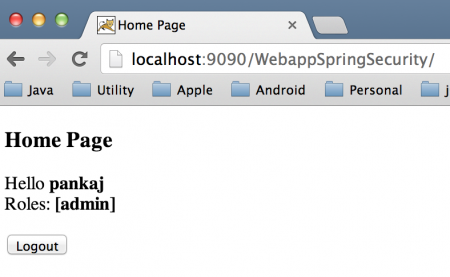

Home Page with Spring Security UserDetailsService DAO Authentication

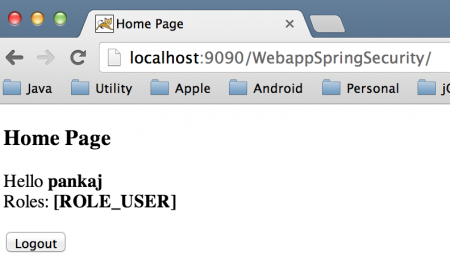

Home Page with Spring Security In-Memory Authentication

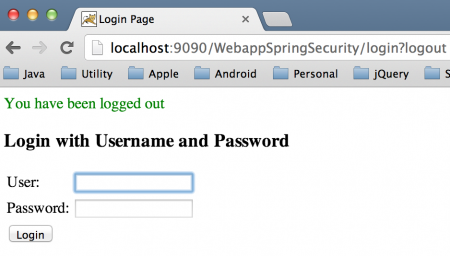

Logout Page

If you want to use Servlet Container that doesn’t support Servlet Specs 3, then you would need to register DispatcherServlet through deployment descriptor. That’s all for the Spring Security Guide and it’s integration in Servlet Based Web Application.
